Product characteristics

• 16AX, 250V

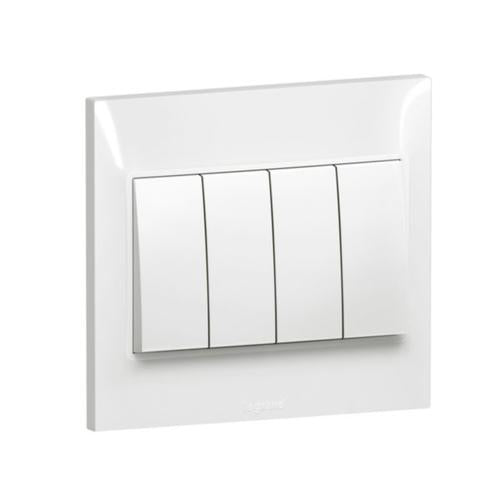

• Sold with white BELANKO S plate
• Screw type terminals for enhanced contacts
• Marked terminals for easy identification

Recommendation / Restriction

• Recommended inside use only

The product's benefits

Installation

Advantages

• Innovative all-in-one face plate & rocker. Fast and Easy install. Paint job made simpler
• Optimized range for new builds and ideal for renovation projects
• Delivered with screws for flush & surface boxes in both plastic and metal boxes

Technical characteristics

• Wiring system: Two-way switch

• Method of operation: Rocker/button

• Assembly arrangement: Basic element with full cover plate

• Push button switch: No

• Number of rockers: 4

• Mounting method: Flush-mounted

• Type of fastening: Screw mounting

• With mounting plate: Yes

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Untreated

• Surface finishing: Glossy

• Colour: White

• RAL-number (similar): 9003

• Colour of switch operator: White

• Label space/information surface: Yes

• Illumination: No

• Suitable for degree of protection (IP): IP20

• Degree of impact strength (IK): IK04

• Nominal voltage: 250 V

• Rated current: 16 A

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Heating switch: No

• Washing machine switch: No

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 33.6 mm

• Built-in depth: 20.5 mm

• Min. depth of built-in installation box: 35 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Operating / setting temperature: -5-50 °C

• Storage temperature: -10-70 °C

• Voltage type: AC

• Mandatory neutral: Yes

• Terminal marking indication: Yes

• Terminals capacity: 1-4 mm²

• Cable nature for connection: Flexible or rigid

• Cable section: 1-4 mm²
