Product characteristics

Single pole switches 10 AX - 250 V~ - Conform to BS EN 60669 - 1 - 2 - way push switch

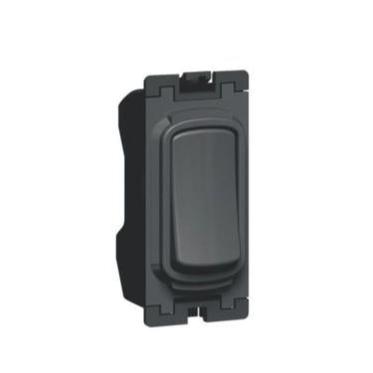

• Anthracite

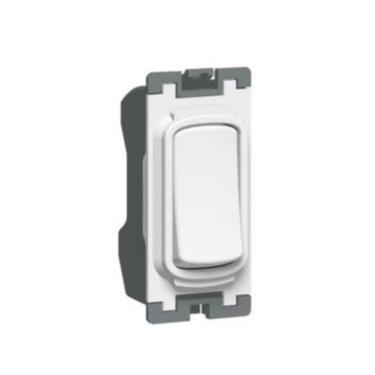

• White

Technical characteristics

• Assembly arrangement: Basic element with central cover plate

• Model: Single push button

• Method of operation: Rocker

• Number of contacts as normally closed contact: 1

• Number of contacts as normally open contact: 1

• Number of contacts as change-over contact: 0

• Contactless type: No

• Number of rockers: 1

• Number of modules (module system): 1

• Number of poles: 2

• Nominal voltage: 250 V

• Rated current: 10 A

• With lighting: No

• With complementary luminous signal: No

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Mounting method: Flush-mounted

• Type of fastening: Engage (snap)

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Lacquered, Untreated

• Surface finishing: Matt, Glossy

• Colour: Anthracite, White

• RAL-number (similar): 7016, 9003

• Transparent: No

• Label space/information surface: No

• Imprint: None

• Suitable for degree of protection (IP): IP20

• Degree of impact strength (IK): IK01

• Device width: 25.5 mm

• Device height: 57.5 mm

• Device depth: 30 mm

• Min. depth of built-in installation box: 40 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Built-in depth: 20.5 mm

• Operating / setting temperature: -5-40 °C

• Storage temperature: -5-40 °C

• Voltage type: AC

• Frequency: 50-60 Hz

• Cable section: 4-4 mm²
