Product characteristics

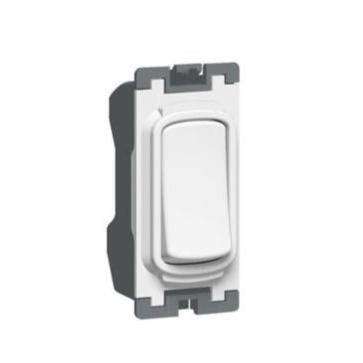

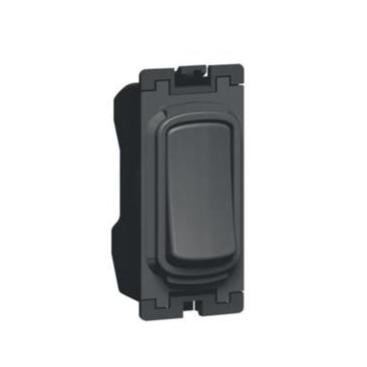

Single pole switches 20 AX - 250 V~ - Conform to BS EN 60669 - 1 - 2 way-

• Anthracite
• White

Technical characteristics

• Wiring system: Two-way switch

• Method of operation: Rocker/button

• Assembly arrangement: Basic element with central cover plate

• Number of modules (module system): 1

• Push button switch: No

• Number of rockers: 1

• Mounting method: Flush-mounted

• Type of fastening: Engage (snap)

• With mounting plate: No

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Lacquered, Untreated

• Surface finishing: Matt, Glossy

• Colour: Anthracite, White

• RAL-number (similar): 7016, 9003

• Colour of switch operator: Anthracite, White

• Label space/information surface: No

• Illumination: No

• Function lighting: Other

• Type of lighting: Other

• Suitable for degree of protection (IP): IP2X

• Degree of impact strength (IK): IK01

• Nominal voltage: 250 V

• Rated current: 20 A

• Switching current for fluorescent lamps: 20 AX

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Device width: 25.5 mm

• Device height: 57.5 mm

• Device depth: 30 mm

• Built-in depth: 20.5 mm

• Min. depth of built-in installation box: 30 mm

• Operating / setting temperature: -5-40 °C

• Storage temperature: -5-40 °C

• Voltage type: AC

• Frequency: 50-60 Hz

• Cable section: 4-4 mm²
