Product characteristics

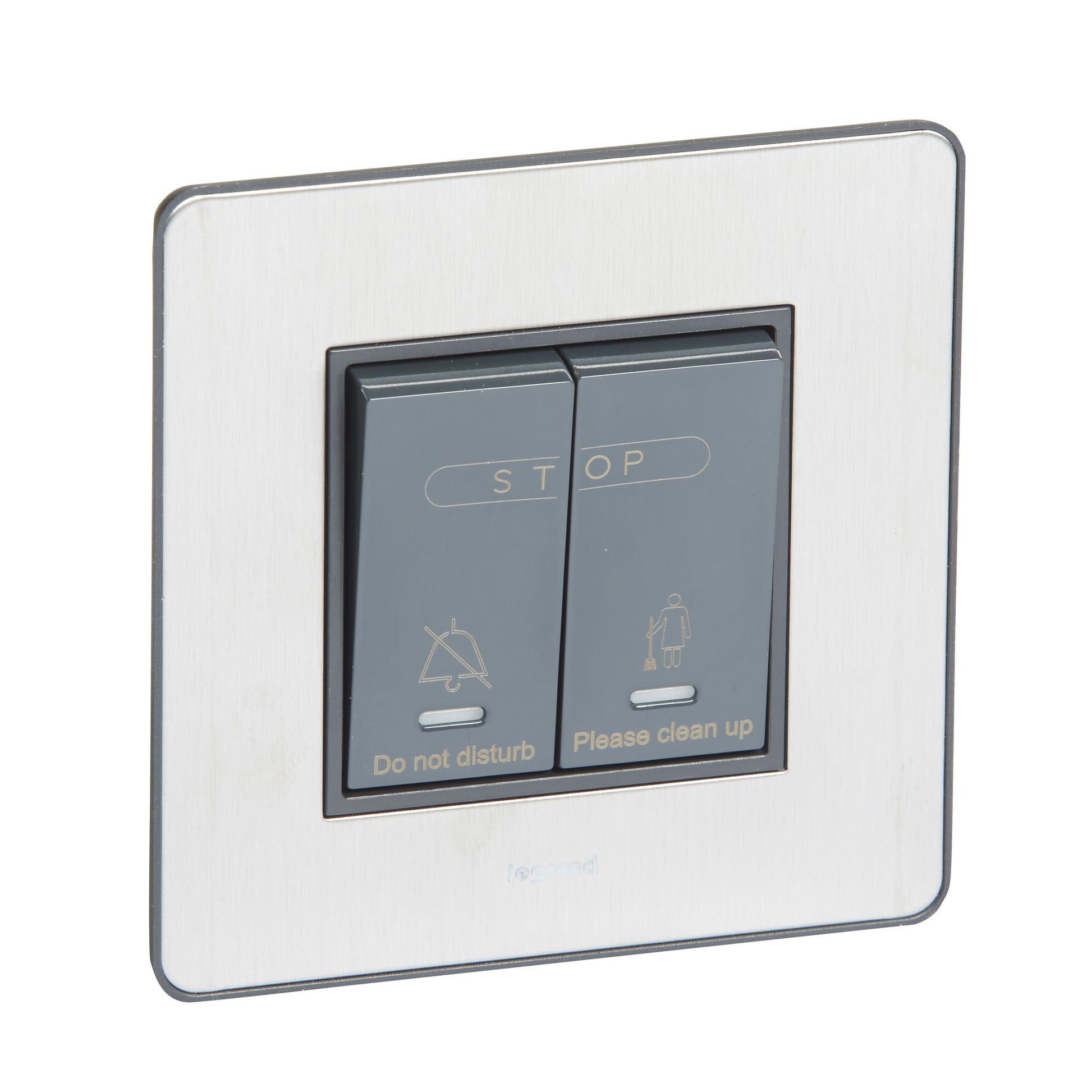

• 230V~ 50/60Hz
• To be used in conjunction with hotel bedroom call indicator
• Screwless cover plate is square 86x86 mm, product thickness is 4mm (once is installed onto the wall).
• Complete product, cover plates are clipped onto the mechanism itself.

Recommendation / Restriction

• Recommended inside use only.


The product's benefits
Advantages

• Plate and rockers in same metal: austenitic stainless steel Non magnetic Grade 304L
• Made in UK
• Delivered with screws for flush & surface boxes in both plastic and metal boxes.

Technical characteristics

• Assembly Arrangement: Basic element with full cover plate

• Model: Other

• Method of Operation: Hotel card

• Number of Contacts as Normally Closed Contact: 0

• Number of Contacts as Normally Open Contact: 1

• Number of Contacts as Change-over Contact: 0

• Contactless Type: No

• Number of Rockers: 2

• Number of Modules (Module System): 2

• Number of Poles: 1

• Nominal Voltage: 250 V

• Rated Current: 10 A

• With Lighting: Yes

• With Complementary Luminous Signal: Yes

• Feedback-Signal Contact: No

• Connection Type: Screwed terminal

• Mounting Method: Flush-mounted

• Type of Fastening: Screw mounting

• Material: Metal

• Material Quality: Stainless steel

• Halogen Free: Yes

• Antimicrobial Treatment: No

• Surface Protection: Metallic

• Surface Finishing: Glossy

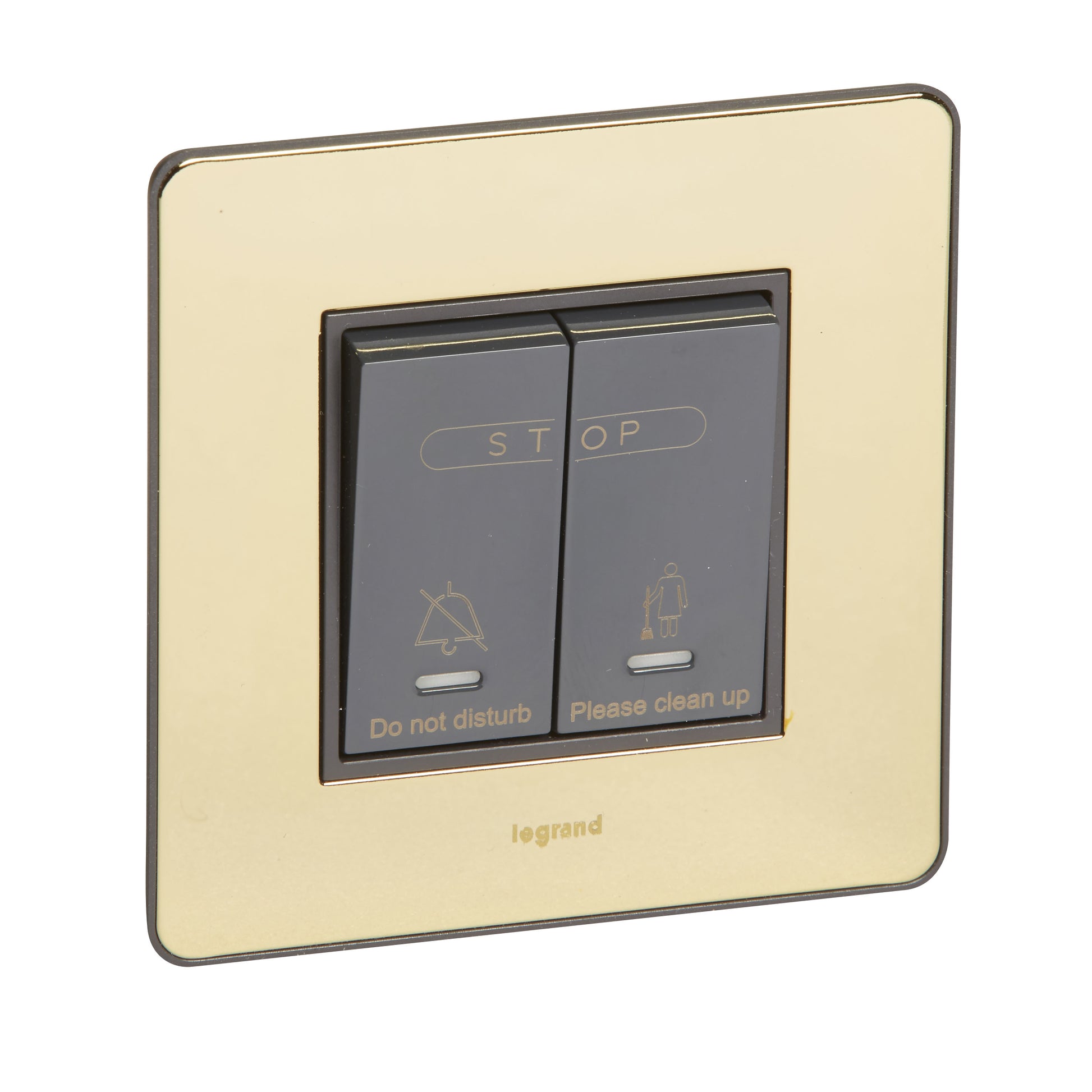

• Colour: Stainless steel, Gold

• Transparent: No

• Label Space/Information Surface: No

• Imprint: None

• Suitable for Degree of Protection (IP): IP2X

• Degree of Impact Strength (IK): IK01

• Device Dimensions:

• Width: 86 mm

• Height: 86 mm

• Depth: 42 mm

• Min. Depth of Built-in Installation Box: 40 mm

• Built-in Depth: 27 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT Support Available: No

• Operating/Setting Temperature: -5°C to 40°C

• Storage Temperature: -5°C to 40°C

• Voltage Type: AC

• Frequency: 50-60 Hz

• Cable Section: 2.5-2.5 mm²
