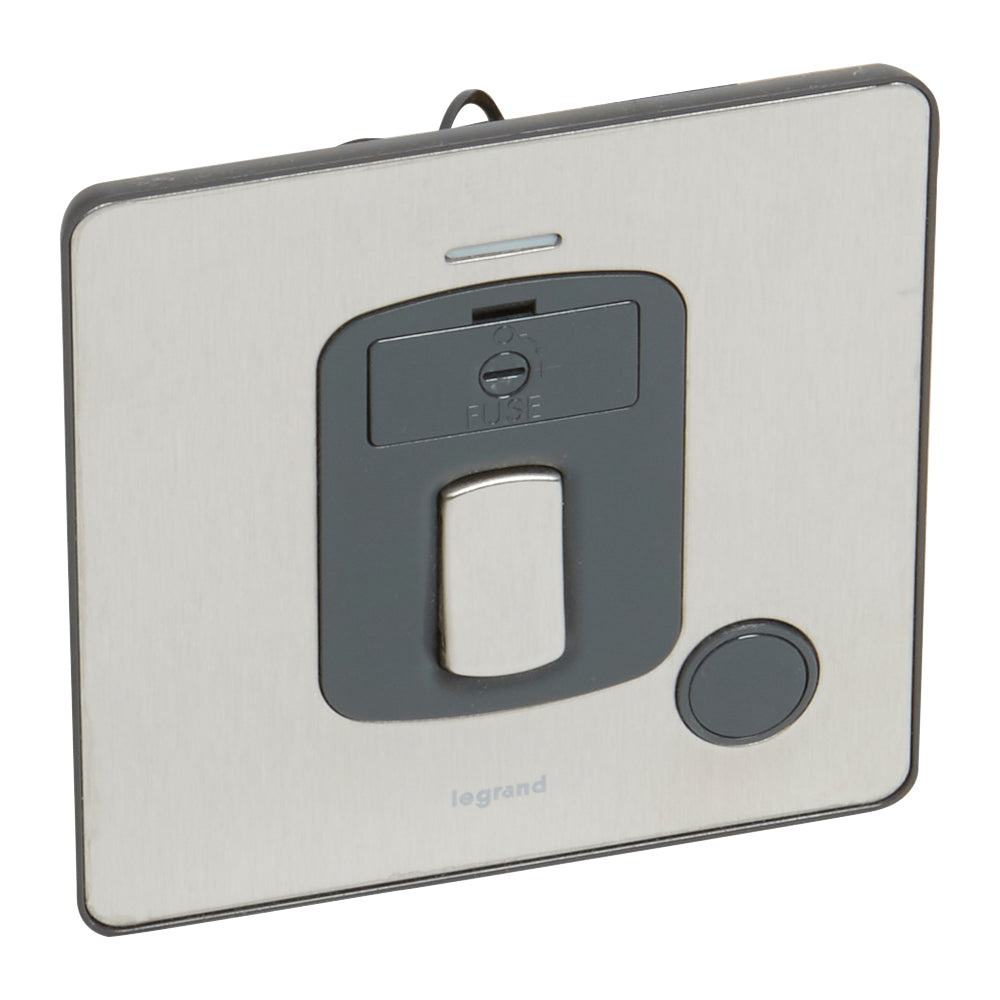

SYNERGY SLEEK - DOUBLE POLE SWITCHED FUSED CONNECTION UNIT + CORD OUTLET + LED POWER INDICATOR
SYNERGY SLEEK - DOUBLE POLE SWITCHED FUSED CONNECTION UNIT + CORD OUTLET + LED POWER INDICATOR
Regular price
OMR 18.620
Sale price
OMR 18.620
Regular price
Unit price
per
Shipping calculated at checkout.
Free Shipping & Returns: On orders above 20.000 OMR
Product characteristics
- 13A, 250V~
- Cord outlet allows the connection of an external device
- Screw type terminals for enhanced contacts accept wires up to 2X6mm2
- Screwless cover plate is square 86x86 mm, product thickness is 4mm (once is installed onto the wall).
- Complete product, cover plates are clipped onto the mechanism itself.
Recommendation / Restriction
- Recommended inside use only
The product's benefits
Installation
- Compact mechanisms for maximum wiring space (back box to be min. 25mm) and slim front plates.
Usage
- Switch to control the status of the connected device with blue LED indication for enhanced visual control. LED technology ensures the maximum quality in terms of reliability, efficiency, maintenance and energy saving. No accessible electrical contact under the plate.
Advantages
- Plate and switch rocker in same metal: austenitic stainless steel Non magnetic Grade 304L
- Made in UK
- Delivered with screws for flush & surface boxes in both plastic and metal boxes.
Technical characteristics
- Connection type: Screw connection
- Mounting method: Front mounting
- Type of current: AC
- Rated current: 13 A
- Rated voltage: 250 V
- Dimensions of glass fuse: 5x25 mm
- Width: 86 mm
- Height: 86 mm
- Depth: 32 mm
- Built-in depth: 22 mm
- Degree of impact strength (IK): IK01
- Degree of protection (IP): IP20
- Operating / setting temperature: -5 to 40 °C
- Storage temperature: -5 to 40 °C
- Cable section: 6-6 mm²
