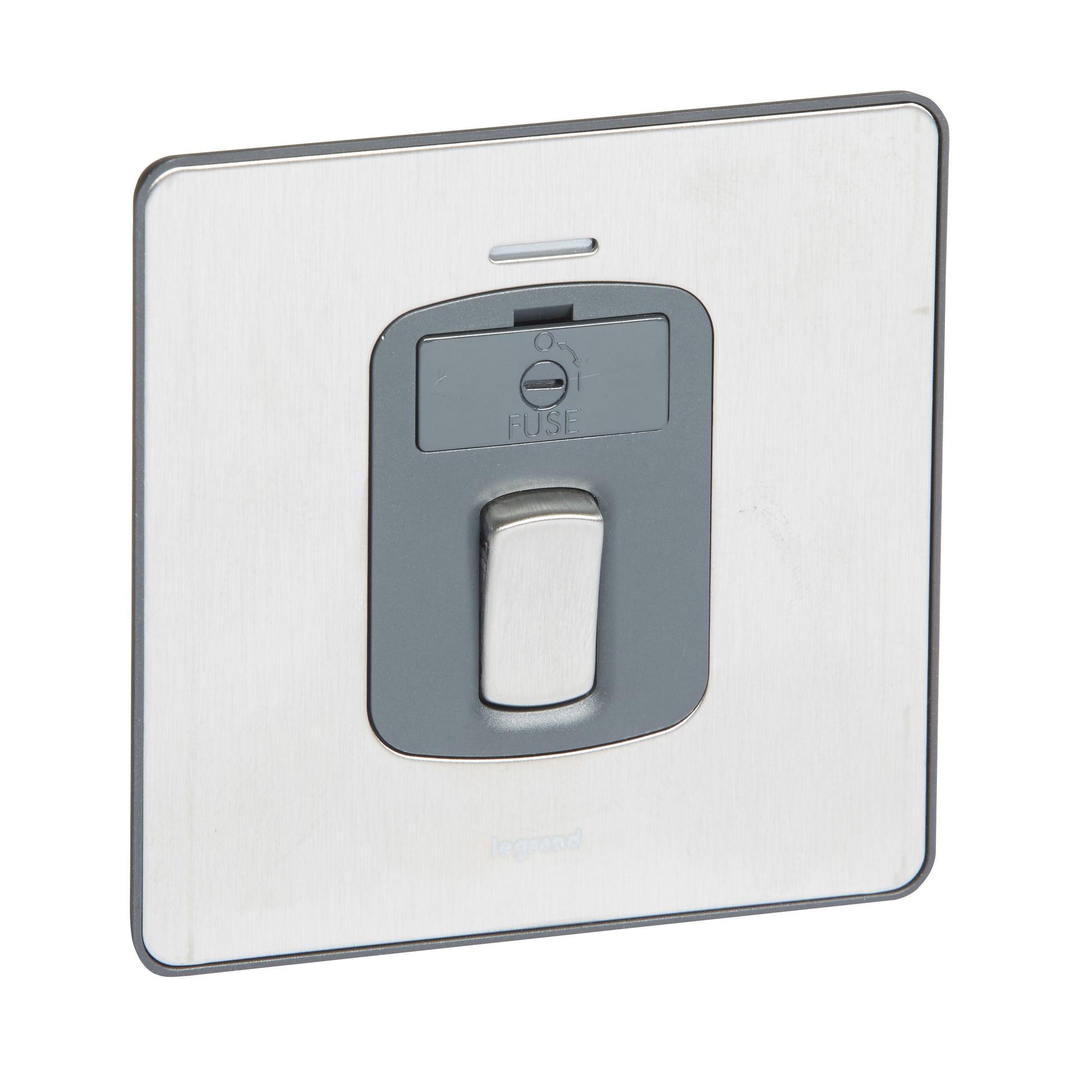

SYNERGY SLEEK - DOUBLE POLE SWITCHED FUSED CONNECTION UNIT + BLUE LED POWER INDICATOR
SYNERGY SLEEK - DOUBLE POLE SWITCHED FUSED CONNECTION UNIT + BLUE LED POWER INDICATOR
Regular price
OMR 16.190
Sale price
OMR 16.190
Regular price
Unit price
per
Shipping calculated at checkout.
Free Shipping & Returns: On orders above 20.000 OMR
Product characteristics
- 13A, 250V~
- Screw type terminals for enhanced contacts accept wires up to 2X6mm2
- Marked terminals for easy identification
- Screwless cover plate is square 86x86 mm, product thickness is 4mm (once is installed onto the wall).
- Complete product, cover plates are clipped onto the mechanism itself.
Recommendation / Restriction
- Recommended inside use only
The product's benefits
Installation
- Compact mechanisms for maximum wiring space (back box to be min. 25mm) and slim front plates
Usage
- Oblong blue led to indicate the status of the connected device, which size is 11mm x 1,5mm, LED technology ensures the maximum quality in terms of reliability, efficiency, maintenance and energy saving No accessible electrical contact under the plate.
Advantages
- Plate and switch rocker in same metal: austenitic stainless steel Non magnetic Grade 304L
- Made in UK
- Delivered with screws for flush & surface boxes in both plastic and metal boxes.
Technical characteristics
- Connection type: Screw connection
- Mounting method: Front mounting
- Type of current: AC
- Rated current: 13 A
- Rated voltage: 250 V
- Dimensions of glass fuse: 5x25 mm
- Width: 86 mm
- Height: 86 mm
- Depth: 32 mm
- Built-in depth: 22 mm
- Degree of impact strength (IK): IK01
- Degree of protection (IP): IP20
- Operating / setting temperature: -5 to 40 °C
- Storage temperature: -5 to 40 °C
- Cable section: 6-6 mm²
