Product characteristics

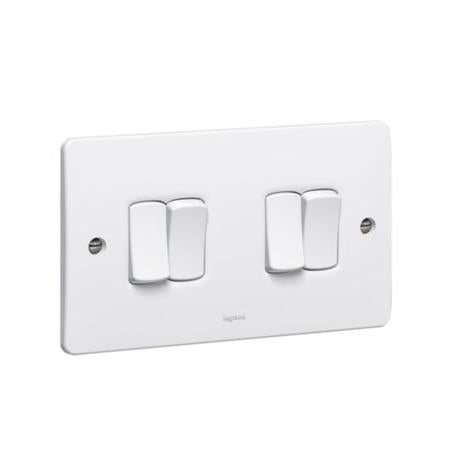

• Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
• Single pole plate switches 10 AX - 250 V~ - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA licence Nominal plate dimensions : 86 x 146 mm - 4 gang - 2 way

• Wiring system: Two-way switch

• Method of operation: Rocker/button

• Assembly arrangement: Basic element with full cover plate

• Push button switch: No

• Number of rockers: 4

• Mounting method: Flush-mounted

• Type of fastening: Screw mounting

• With mounting plate: No

• Material: Plastic

• Material quality: Duroplast

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Untreated

• Surface finishing: Glossy

• Colour: White

• RAL-number (similar): 9003

• Colour of switch operator: White

• Label space/information surface: No

• Illumination: No

• Function lighting: Other

• Type of lighting: Other

• Suitable for degree of protection (IP): IP2X

• Degree of impact strength (IK): IK01

• Nominal voltage: 250 V

• Rated current: 10 A

• Switching current for fluorescent lamps: 10 AX

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Heating switch: No

• Washing machine switch: No

• Device width: 146 mm

• Device height: 86 mm

• Device depth: 25.5 mm

• Built-in depth: 14 mm

• Min. depth of built-in installation box: 30 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Operating / setting temperature: -5-40 °C

• Storage temperature: -5-40 °C

• Voltage type: AC

• Frequency: 50-60 Hz

• Cable section: 10-10 mm²
