Product characteristics

• Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps

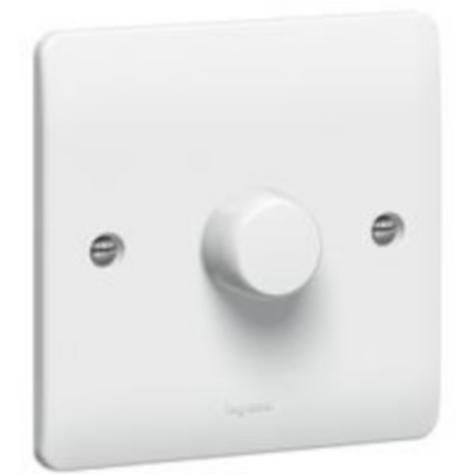

• Push on/off rotary dimm er 1000 W 100 - 240 V/50 - 60 Hz - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 40 mm deep - 60 - 1000 W (230 V) - 60 - 500 W (127 V) for incandescent and halogen lamps 60 - 600 VA (230 V) - 60 - 300 VA (127 V) for halogen lamps with electronic transformers 60 - 100 VA (230 V) - 60 - 500 VA (127 V) for halogen lamps with ferromagnetic transformers - Nominal plate dimensions : 86 x 86 mm - 1 gang 2 - way

• Assembly arrangement: Basic element

• Method of operation: Turn/push button

• App control via Bluetooth: No

• Serial dimmer: Yes

• Type of load: Inductive load

• Light value memory: No

• Applicable with button: Yes

• Applicable with movement sensor: No

• Applicable with presence indicator: No

• Applicable with time switch/timer: No

• Applicable with transmission button: No

• Applicable with infrared button: No

• Mounting method: Flush-mounted

• Type of fastening: Mounting with screw

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Surface protection: Lacquered

• Surface finishing: Glossy

• Colour: White

• RAL-number (similar): 9003

• Transparent: No

• Suitable for degree of protection (IP): IP40

• Degree of impact strength (IK): IK02

• Nominal voltage: 230-230 V

• Frequency: 47-63 Hz

• Control voltage: 90-243 V

• Nominal power resistive load: 60-1000 W

• Connection type: Screwed terminal

• Cable section: 2.5-2.5 mm²

• Device width: 42 mm

• Device height: 62 mm

• Device depth: 33 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Built-in depth: 33 mm

• Operating / setting temperature: 0-35 °C

• Storage temperature: -10-70 °C

• Voltage type: AC

• Stress test conformity (1000V): No
