Product characteristics

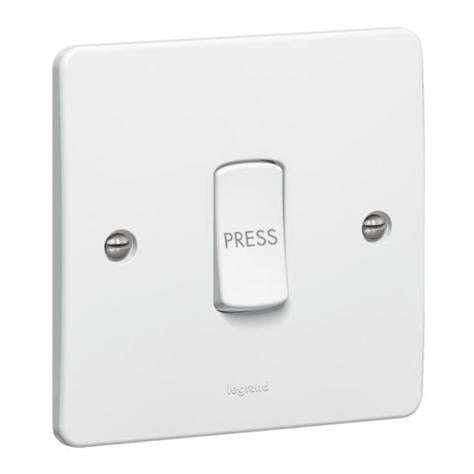

• Synergy - single pole switches, single pole push and key switches, rotary dimmers - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
• Single pole push switches 10 A - 250 V~ - Conform to BS EN 60669 - 1 - For flush-mounting, back box to be min. 16 mm deep - ASTA licence - 1 gang - 2 way push switch marked PRESS

• Assembly arrangement: Basic element with full cover plate

• Model: Single push button

• Method of operation: Rocker

• Number of contacts as normally closed contact: 1

• Number of contacts as normally open contact: 1

• Number of contacts as change-over contact: 0

• Contactless type: No

• Number of rockers: 1

• Number of modules (module system): 2

• Number of poles: 2

• Nominal voltage: 250 V

• Rated current: 10 A

• With lighting: No

• With complementary luminous signal: No

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Mounting method: Flush-mounted

• Type of fastening: Screw mounting

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Untreated

• Surface finishing: Glossy

• Colour: White

• RAL-number (similar): 9003

• Transparent: No

• Label space/information surface: Yes

• Imprint: Symbol "bell"

• Suitable for degree of protection (IP): IP20

• Degree of impact strength (IK): IK01

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 26 mm

• Min. depth of built-in installation box: 40 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Built-in depth: 14 mm

• Operating / setting temperature: -5-40 °C

• Storage temperature: -5-40 °C

• Voltage type: AC

• Frequency: 50-60 Hz

• Cable section: 4-4 mm²
