Product characteristics

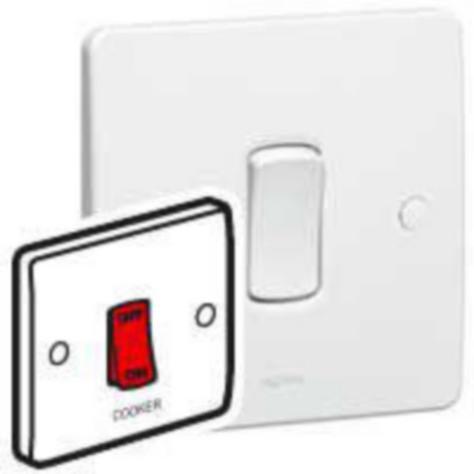

• Synergy - double pole switches - white - Front plates : white thermoset - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Compact mechanism for maximised wiring space - Supplied with faceplate screw caps
• Double pole switches 45 A - 250 V~ - Conform to BS EN 60669 - 1 - ASTA licence - For flush-mounting, back box to be min. 45 mm deep Nominal plate dimensions : 86 x 86 mm - DP switch red rocker marked COOKER

• Wiring system: Off switch, 1-pole

• Method of operation: Rocker/button

• Assembly arrangement: Basic element with full cover plate

• Push button switch: No

• Number of rockers: 1

• Mounting method: Flush-mounted

• Type of fastening: Screw mounting

• With mounting plate: No

• Material: Plastic

• Material quality: Duroplast

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Untreated

• Surface finishing: Glossy

• Colour: White

• RAL number (similar): 9003

• Colour of switch operator: Red

• Label space/information surface: No

• Illumination: No

• Function lighting: Other

• Type of lighting: Other

• Degree of protection (IP): IP2X

• Degree of impact strength (IK): IK01

• Nominal voltage: 250 V
• Rated current: 45 A

• Switching current for fluorescent lamps: 45 AX

• Feedback-signal contact: No

• Connection type: Screwed terminal

• Heating switch: No

• Washing machine switch: Yes

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 35 mm

• Built-in depth: 22 mm

• Minimum depth of built-in installation box: 30 mm

• Compatible with Apple HomeKit: No

• Compatible with Google Assistant: No

• Compatible with Amazon Alexa: No

• IFTTT support available: No

• Operating/setting temperature: -5 to 40 °C

• Storage temperature: -5 to 40 °C

• Voltage type: AC

• Frequency: 50-60 Hz

• Cable section: 10-10 mm²
