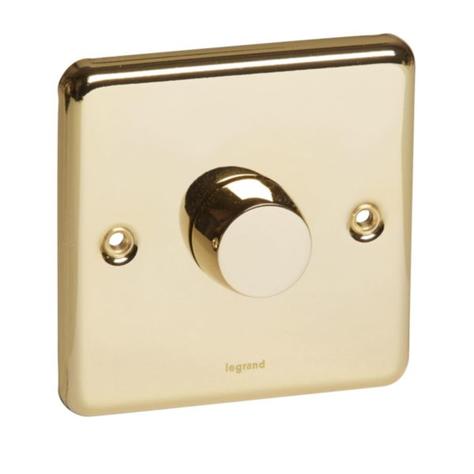

SYNERGY AUTHENTIC - UNIVERSAL ROTARY DIMMER (LED & HALOGEN) - 300W - GLOSSY GOLD

SYNERGY AUTHENTIC - UNIVERSAL ROTARY DIMMER (LED & HALOGEN) - 300W - GLOSSY GOLD

OMR 44.270
OMR 44.270
Sale Sold out
Shipping calculated at checkout.
Details

In stock: 10

Free Shipping & Returns: On orders above 20.000 OMR

    View full details
    About your query!
    Description
    Shipping Information
    Reviews

    Product characteristics

    • 100V~ to 250V~, 50/60Hz 5W to 75W for dimmable LED and fluocompact, 5W to 300W for halogen and incandescent
    • Can be associated with one or several push - buttons, for ON/OFF or dimming control.
    • Integrates memory level function : when switched ON, gradually (2 s) lights up at the level set before last switch OFF.
    • Cover plate is square 86x86 mm,product thickness is 7mm (once is installed onto the wall).
    • Equipped with overvoltage and short-circuit protection

    Recommendation / Restriction

    • Recommended inside use only
    The product's benefits
    Installation
    • Without neutral can be retro-fitted into existing point of lighting

    Usage

    • Rotary shaped knob for easy grip allowing the dimming of enabled charges (included LED charges)

    Advantages

    • Plate and knob in same metal: austenitic stainless steel Non magnetic Grade 304L
    • Rotary dimmer for all type of lamps including dimmable LED and fluocompact
    • Delivered with screws for flush & surface boxes in both plastic and metal boxes
    Technical characteristics
    • Assembly arrangement: Basic element with full cover plate
    • Method of operation: Turn/push button
    • App control via Bluetooth: No
    • Serial dimmer: No
    • Type of load: Universal and LED Retrofit
    • Substation input: Yes
    • Light value memory: Yes
    • Applicable with button: Yes
    • Applicable with movement sensor: No
    • Applicable with presence indicator: No
    • Applicable with time switch/timer: No
    • Applicable with transmission button: No
    • Applicable with infrared button: No
    • Mounting method: Flush-mounted
    • Type of fastening: Mounting with screw
    • Material: Metal
    • Material quality: Other
    • Halogen free: Yes
    • Surface protection: Galvanized
    • Surface finishing: Glossy
    • Colour: Gold
    • Transparent: No
    • Suitable for degree of protection (IP): IP20
    • Degree of impact strength (IK): IK01
    • Nominal voltage: 100-240 V
    • Frequency: 47-63 Hz
    • Control voltage: 95-245 V
    • Nominal power resistive load: 300-300 W
    • Connection type: Screwed terminal
    • Cable section: 2.5-2.5 mm²
    • Device width: 86 mm
    • Device height: 86 mm
    • Device depth: 56 mm
    • Compatible with Apple HomeKit: No
    • Compatible with Google Assistant: No
    • Compatible with Amazon Alexa: No
    • IFTTT support available: No
    • Built-in depth: 34 mm
    • Operating / setting temperature: -5-35 °C
    • Storage temperature: -10-70 °C
    • Voltage type: AC
    • Stress test conformity (1000V): No
