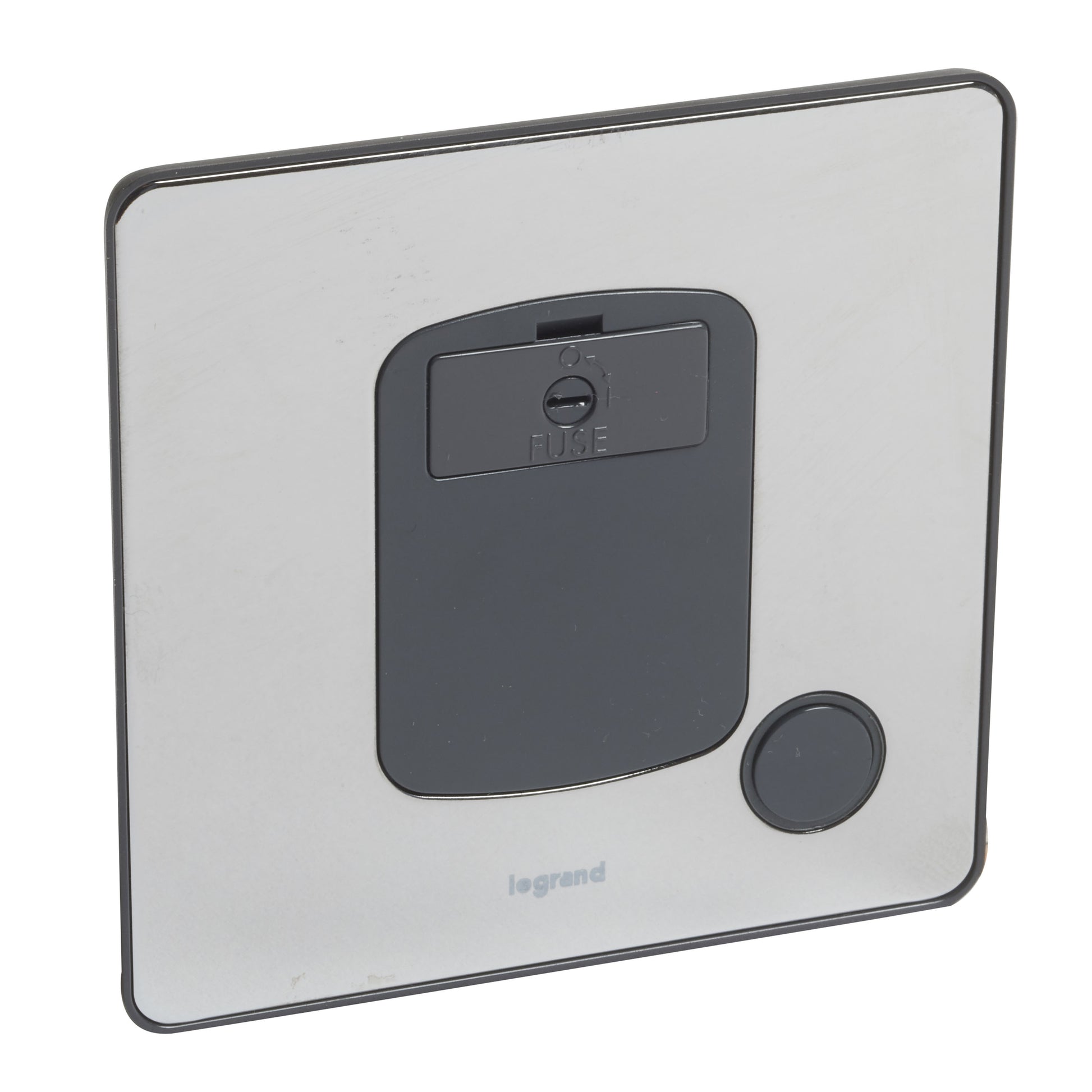

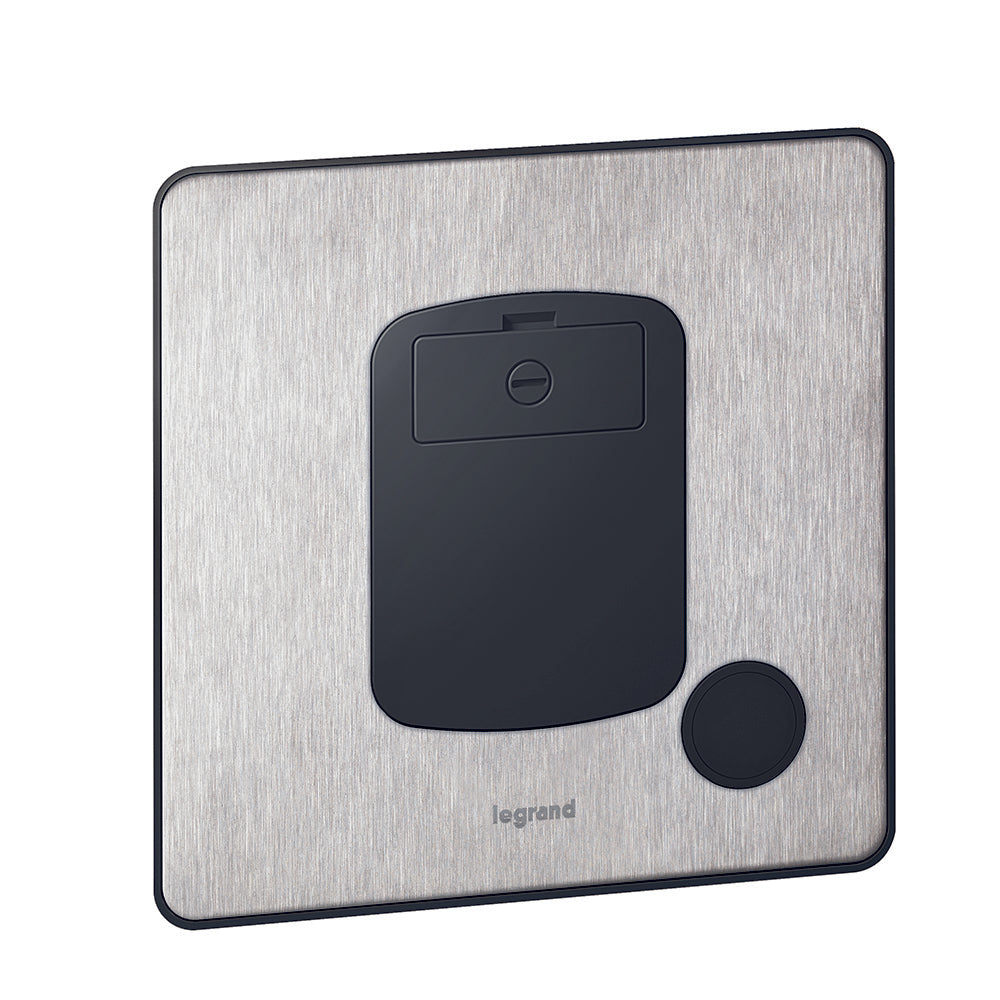

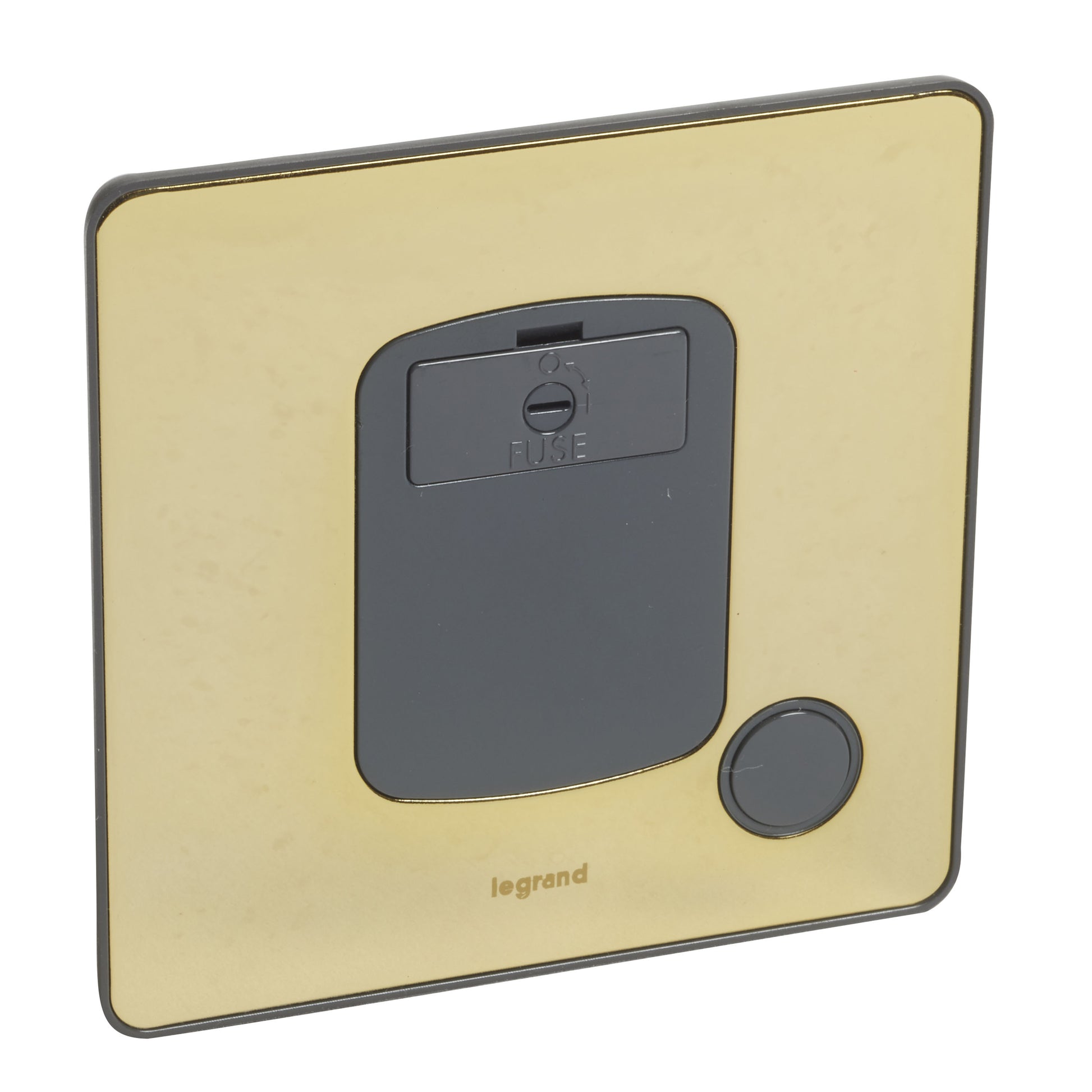

Product characteristics

• 13A, 250V~
• Cord outlet allows the connection of an external device
• Screw type terminals for enhanced contacts accept wires up to 2X6mm2
• Screwless cover plate is square 86x86 mm, product thickness is 4mm (once is installed onto the wall).
• Complete product, cover plates are clipped onto the mechanism itself.


Recommendation / Restriction

• Recommended inside use only


The product's benefits
Installation

• Compact mechanisms for maximum wiring space (back box to be min. 25mm) and slim front plates


Advantages

• Plate in austenitic stainless steel Non magnetic Grade 304L
• Made in UK
• Delivered with screws for flush & surface boxes in both plastic and metal boxes.


Technical characteristics

• Connection type: Screw connection

• Mounting method: Front mounting

• Type of current: AC

• Rated current: 13 A

• Rated voltage: 250 V

• Dimensions of glass fuse: 5x25 mm

• Width: 86 mm

• Height: 86 mm

• Depth: 29 mm

• Built-in depth: 22 mm

• Degree of impact strength (IK): IK01

• Degree of protection (IP): IP20

• Operating / setting temperature: -5 to 40 °C

• Storage temperature: -5 to 40 °C

• Cable section: 6-6 mm²
