Product characteristics

• RJ11/RJ12 single socket
• Screwless square cover plate 86x86mm
• Product thickness is 4mm (once is installed onto the wall).

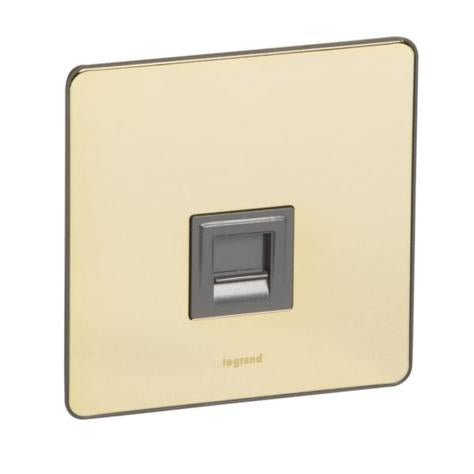

• Glossy gold : plate made of stainless steel, grade 430, with a chromium plating which bring a better rusting resistance and a nicer finish
• Complete product, cover plates are clipped onto the mechanism itself.


Recommendation / Restriction

• For flush-mounting, back box to be minimum 35mm deep. Recommended inside use only

The product's benefits
Installation

• Rapid cable connection : terminal screws captive and backed off ready for cabling. Large angled terminal entries. Compact mechanism for maximum wiring space.

Advantages

• Delivered with screws for flush & surface boxes in both plastic and metal boxes
• Made in UK


Technical characteristics

• Surface mounting: No

• Duct installation: No

• Floor box/subfloor mounted: No

• Type of fastening: Screwing

• Assembly arrangement: Basic element with full cover plate

• Type of connector: Other

• Category: 3

• Colour: Other, Gold

• Connection type: Other

• Shielded housing: No

• Separate earthing connection: Yes

• With label space: No

• Separate strain relief: No

• Mounting method shielding connection: None

• Outlet direction: Straight

• With dust cover: Yes

• Degree of protection (IP): IP21

• Mechanical coding: No

• Colour coding: No

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 20.5 mm

• Degree of impact strength (IK): IK01

• Operating / setting temperature: 5-45 °C

• Storage temperature: -20-70 °C

• Halogen free: Yes

• Antimicrobial treatment: No
