Product characteristics

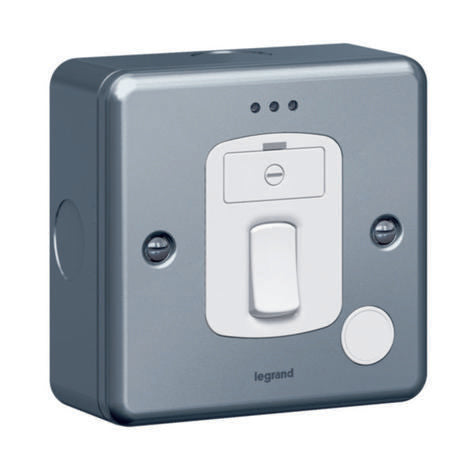

• Synergy - British standard socket outlets and fused connection units - Metalclad - Front plates : grey epoxy coated steel - Terminal screws captive and backed off ready for cabling - large angled terminal entries - Supplied complete with close fit 43 mm deep surface - mounting back box
• Fused connection units 13 A - 250 V~ - Conform to BS 1363 - Part 4 : 1995 - Fused 13 A (fuse supplied) - Fuse drawer retained by quarter turn catch, drawer padlockable in open position for safety - Flush-mounting back box : min. 25 mm deep - Nominal plate dimensions : 86 x 86 mm Double pole switched - With cord outlet + red LED power indicator.

Technical characteristics

• Connection Type: Screw connection

• Mounting Method: Front mounting

• Type of Current: AC

• Rated Current: 13 A

• Rated Voltage: 230 V

• Dimensions Glass Fuse: 5x25 mm

• Width: 86 mm

• Height: 86 mm

• Depth: 44 mm

• Degree of Impact Strength (IK): IK01

• Degree of Protection (IP): IP20

• Operating/Setting Temperature: -5°C to 40°C

• Storage Temperature: -5°C to 40°C

• Cable Section: 6-6 mm²
