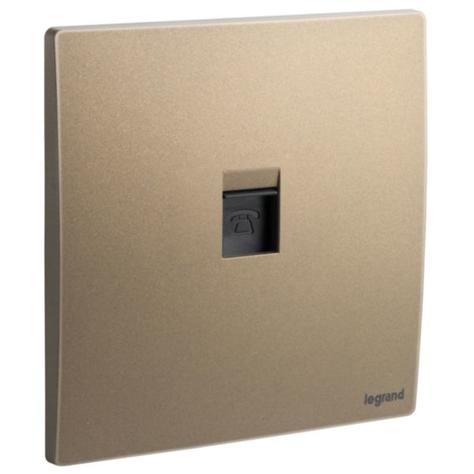

Technical characteristics

• Surface mounting: No

• Flush-mounted installation: Yes

• Type of fastening: Engage (snap)

• Assembly arrangement: Basic element with full cover plate

• Type of connector: Other

• Colour: Bronze
• Connection type: 110

• Shielded housing: No

• Separate earthing connection: No

• With label space: No

• Mounting method shielding connection: None

• Outlet direction: Straight

• With dust cover: Yes

• With terminal resistor: No

• Degree of protection (IP): IP20

• Colour coding: No

• Device dimensions:

• Width: 86 mm

• Height: 86 mm

• Depth: 32.1 mm

• Number of modules (module system): 1

• Built-in depth: 24.5 mm

• Degree of impact strength (IK): IK04

• Operating/setting temperature: -5 to 50 °C

• Storage temperature: -10 to 70 °C

• Terminal marking indication: Yes

• Halogen free: Yes

• Antimicrobial treatment: No

• Mounting method: Flush-mounted

• Horizontal fixing center distance: 60.3 mm
