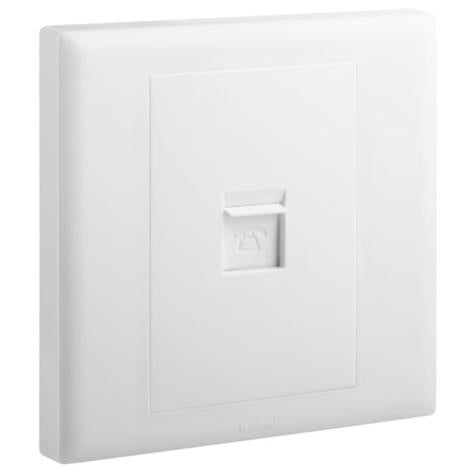

Advantages

• Toolless connector with fast connection thanks to integrated crimping.
• Optimised range for new builds and ideal for renovation projects
• A squarish shape designed with a full rocker plate aesthetic

• Surface mounting: No

• Flush-mounted installation: Yes

• Type of fastening: Engage (snap)

• Assembly arrangement: Basic element

• Type of connector: Other

• Colour: White

• RAL-number: 9003

• Connection type: 110

• Shielded housing: No

• Separate earthing connection: No

• With label space: No

• Mounting method shielding connection: None

• Outlet direction: Straight

• With dust cover: Yes

• With terminal resistor: No

• Degree of protection (IP): IP20

• Colour coding: Yes

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 31.9 mm

• Number of modules (module system): 1

• Built-in depth: 20.4 mm

• Degree of impact strength (IK): IK04

• Operating / setting temperature: -5-50 °C

• Storage temperature: -10-70 °C

• Terminal marking indication: Yes

• Halogen free: Yes

• Antimicrobial treatment: No

• Mounting method: Flush-mounted

• Horizontal fixing center distance: 60.3-60.3 mm
