Product characteristics

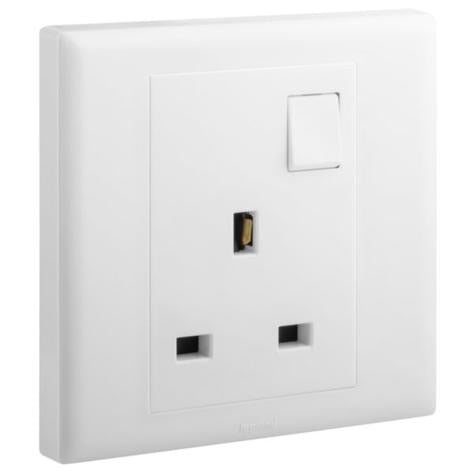

• 2P+E British Standard, 13A, 250V
• ELOE is sold as a complete set under one cat number
• Screw type terminals for a secured & enhanced contacts
• Marked terminals for easy identification
• Glossy white finish.

Recommendation / Restriction

• Recommended inside use only.

The product's benefits
Installation

• Quick and Easy plate clipping system.


Usage

• Fitted with safety shutters to maximise child protection.


Advantages

• Delivered with its protective shell against paint and dust during installation phase
• Delivered with screws for flush & surface boxes in both plastic and metal boxes
• A squarish shape designed with a full rocker plate aesthetic.

Technical characteristics

• Model: British Standard

• Number of active contacts (flat): 2

• With complementary luminous signal: No

• Number of ports USB-A: 0

• Number of ports USB-C: 0

• Number of socket outlets switchable: 1

• Number of phases: 1

• Connection type: Screwed terminal

• With hinged lid: No

• With enhanced contact protection: Yes

• Colour: White

• RAL-number (similar): 9003

• Metallic colour: No

• Transparent: No

• Eject mechanism: No

• With function lighting: No

• With orientation lighting: No

• Overvoltage protection: No

• Fault current protection: No

• With miniature fuse: No

• Special power supply: No special power supply

• Mounting method: Flush-mounted

• Type of fastening: Mounting with screw

• Material: Plastic

• Material quality: Thermoplastic

• Halogen free: Yes

• Surface protection: Untreated

• Surface finishing: Glossy

• Antimicrobial treatment: No

• With on/off switch: Yes

• Nominal current: 13 A

• Nominal voltage: 250 V

• Frequency: 50–60 Hz

• Suitable for degree of protection (IP): IP20

• Degree of impact strength (IK): IK04

• Device width: 86 mm

• Device height: 86 mm

• Device depth: 28.2 mm

• Min. depth of built-in installation box: 35 mm

• Compatible with Apple HomeKit: No

• Compatible with Amazon Alexa: No

• Compatible with Google Assistant: No

• IFTTT support available: No

• With Wi-Fi signal repeater: No

• With built-in Bluetooth speaker: No

• For heavy conditions according to VDE: No

• Built-in depth: 18.7 mm

• Operating / setting temperature: -5–35 °C

• Storage temperature: -10–70 °C

• Voltage type: AC

• Terminal marking indication: Yes

• Prewired: No

• Terminals capacity: 1–4 mm²

• Cable nature for connection: Flexible or rigid

• Cable section: 1–4 mm²

• Assembly arrangement: Basic element with full cover plate

• Connected object: No
