Product characteristics

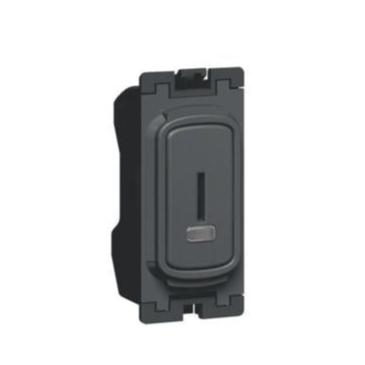

• Double pole key switches 20 AX - 250 V~ - Conform to BS EN 60669 - 1 - Key supplied - Anthracite - Key switch + neon

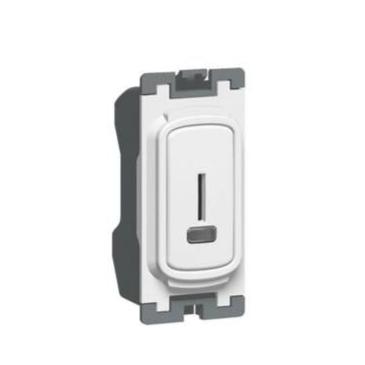

• Double pole key switches 20 AX - 250 V~ - Conform to BS EN 60669 - 1 - Key supplied - White - Key switch + neon

Technical characteristics

• Wiring System: Off switch 2x1-pole

• Method of Operation: Key

• Assembly Arrangement: Basic element with central cover plate

• Number of Modules (Module System): 1

• Push Button Switch: No

• Number of Rockers: 1

• Mounting Method: Flush-mounted

• Type of Fastening: Engage (snap)

• With Mounting Plate: No

• Material: Plastic

• Material Quality: Thermoplastic

• Halogen Free: Yes

• Antimicrobial Treatment: No

• Surface Protection: Lacquered and Untreated

• Surface Finishing: Matt and Glossy

• Colour: Anthracite and White

• RAL Number (Similar): 7016 and 9003

• Colour of Switch Operator: Anthracite and White

• Label Space/Information Surface: No

• Illumination: Yes
• Function Lighting: Illuminated (on)

• Type of Lighting: LED not exchangeable

• Degree of Protection (IP): IP2X

• Degree of Impact Strength (IK): IK01

• Nominal Voltage: 250 V

• Rated Current: 20 A

• Switching Current for Fluorescent Lamps: 20 AX

• Feedback-Signal Contact: No

• Connection Type: Screwed terminal

• Device Dimensions:

• Width: 25.5 mm

• Height: 57.5 mm

• Depth: 25.5 mm

• Built-in Depth: 20.5 mm

• Minimum Depth of Built-In Installation Box: 30 mm

• Operating/Setting Temperature: -5 to 40 °C

• Storage Temperature: -5 to 40 °C

• Voltage Type: AC

• Frequency: 50-60 Hz

• Cable Section: 4-4 mm²
