Product characteristics

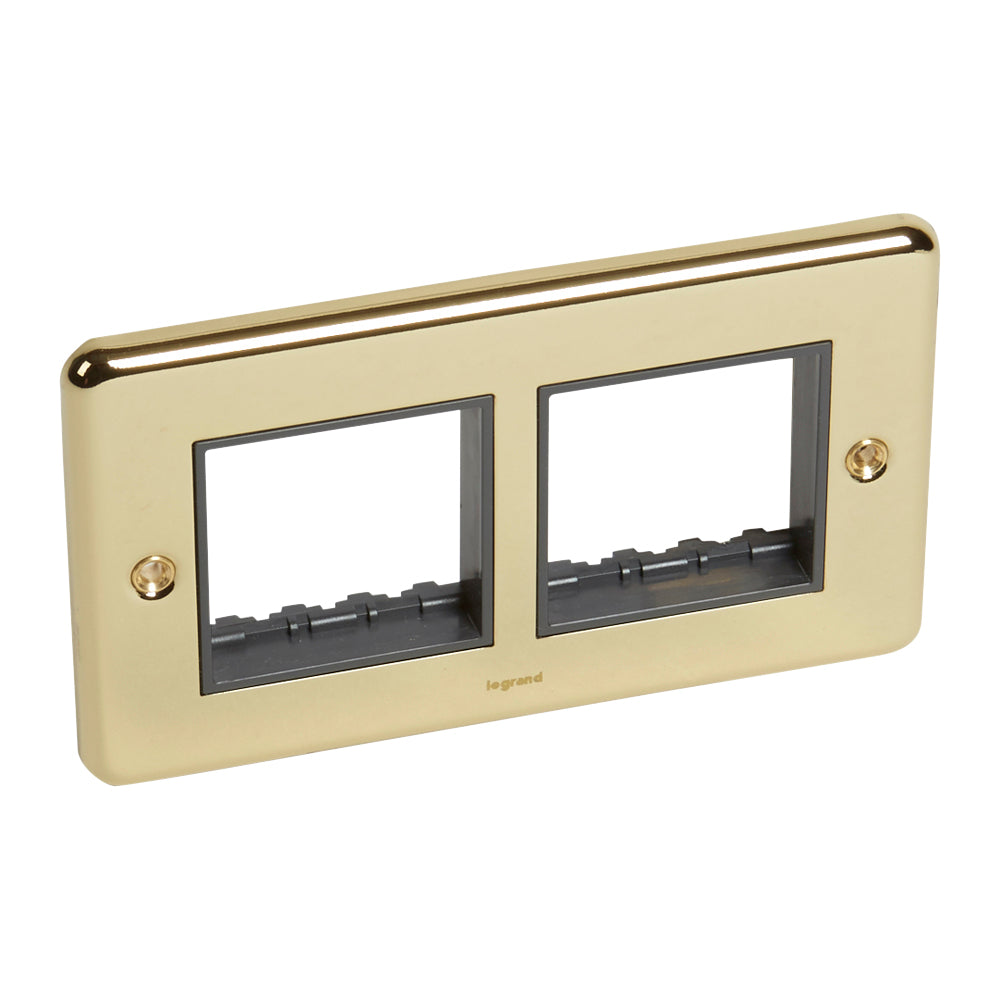

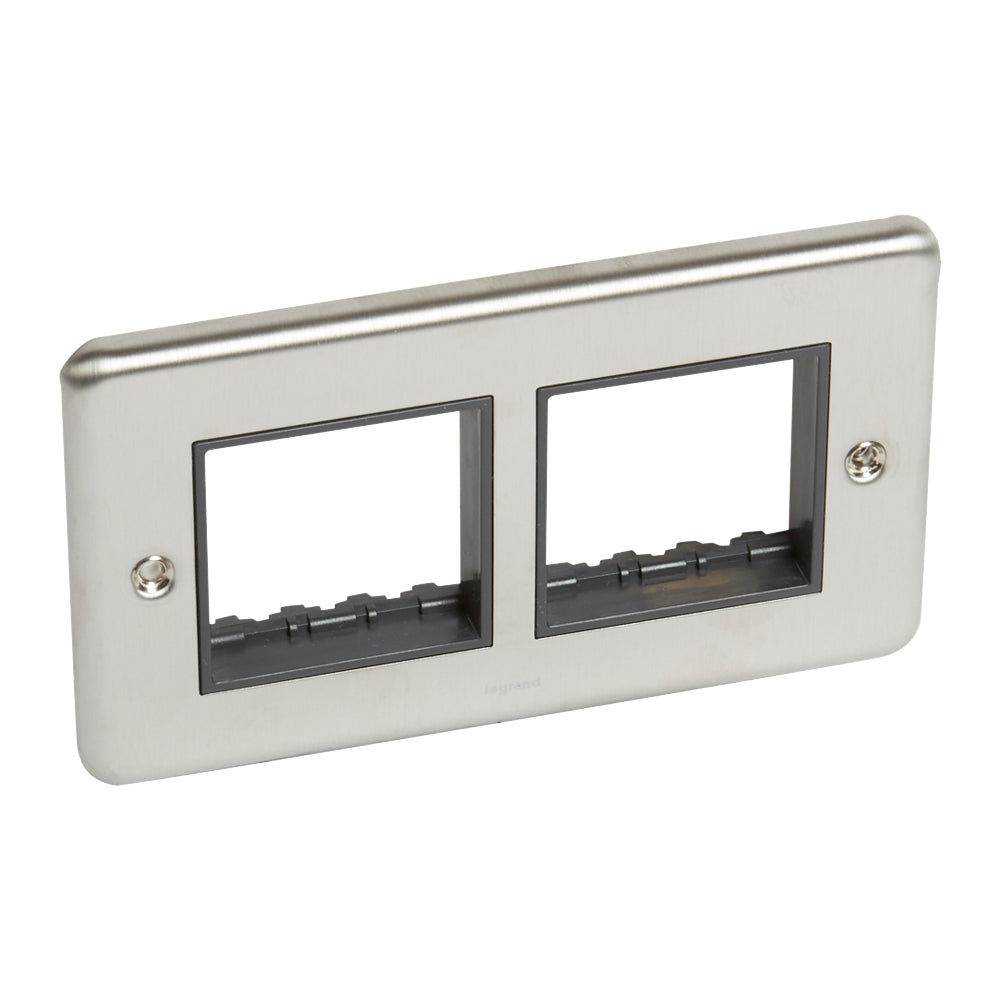

• Grid system front plates for Arteor mechanisms 2 gang for 4 Arteor module - Clip - in carrier plate - No yoke required - Synergy Authentic - 86 x 146
• Cover plate is square 86x146 mm, product thickness is 7mm (once is installed onto the wall).
• Brushed stainless steel
• Polished stainless steel
• Glossy gold

Recommendation / Restriction

• Recommended inside use only

The product's benefits
Installation

• Arteor module fit into BS standard wall boxes.


Usage

• Allows to pick form large Arteor functions library to complete an installation


Advantages

• Plate in austenitic stainless steel Non magnetic Grade 304L
• Made in UK
• Delivered with screws for flush & surface boxes in both plastic and metal boxes


Technical characteristics

• Number of units: 2

• Mounting direction: Horizontal

• Number of units horizontal: 2

• Number of units vertical: 1

• Number of modules horizontal (module system): 4

• Number of modules vertical (module system): 1

• With mounting grid: No

• Flush-mounted installation: Yes

• Suitable for subfloor installation duct box: No

• Suitable for wall duct: No

• Suitable for built-in installation: No

• Label space/information surface: No

• Material: Metal

• Material quality: Stainless steel

• Halogen free: Yes

• Antimicrobial treatment: No

• Surface protection: Brushed, Lacquered

• Surface finishing: Matt, Glossy

• Colour: Stainless steel, Gold

• Transparent: No

• With hinged lid: No

• Degree of protection (IP): IP2X

• Degree of impact strength (IK): IK01

• Type of fastening: Screw mounting

• Width: 146 mm

• Height: 86 mm

• Depth: 7 mm

• Built-in height: 0 mm

• Operating / setting temperature: -5 to 40 °C

• Storage temperature: -5 to 40 °C

• Latin wood species: Not applicable

• Certification of wood (list): Not applicable

• Wood Climate area: Not applicable
