Legrand

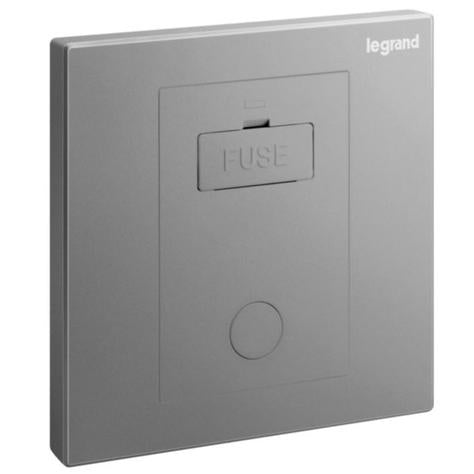

GALION - 1 GANG UNSWITCHED FUSED CONNECTION UNIT WITH CORD OUTLET - 13A - DARK SILVER
GALION - 1 GANG UNSWITCHED FUSED CONNECTION UNIT WITH CORD OUTLET - 13A - DARK SILVER
Regular price
OMR 8.710
Sale price
OMR 8.710
Regular price
Unit price
per
Shipping calculated at checkout.
Free Shipping & Returns: On orders above 20.000 OMR
Product characteristics
- 13A, 250V~
- Sold complete under one catalog number, ready to install.
- Screw type terminals for enhanced contacts
- Marked terminals for easy identification
- Strip length indicator avoids waste of wires
Recommendation / Restriction
- Recommended inside use only
Technical characteristics
- Connection type: Screw connection
- Mounting method: Other
- Type of current: AC
- Rated current: 13 A
- Rated voltage: 250 V
- Dimensions glass fuse: 5x25 mm
- Width: 86 mm
- Height: 88 mm
- Depth: 31.1 mm
- Built-in depth: 21.6 mm
- Degree of impact strength (IK): IK04
- Degree of protection (IP): IP20
- Operating / setting temperature: -5-50 °C
- Storage temperature: -10-70 °C
- Voltage type: AC
- Frequency: 50-60 Hz
- Mandatory neutral: No
- Terminal marking indication: Yes
- Colour: Other
- Halogen free: Yes
- Antimicrobial treatment: No
- Number of terminals: 5
- Terminals capacity: 1-4 mm²
- Cable nature for connection: Flexible or rigid
- Cable section: 1-4 mm²
